DS05 · Fingerprint Flat Panel DS05

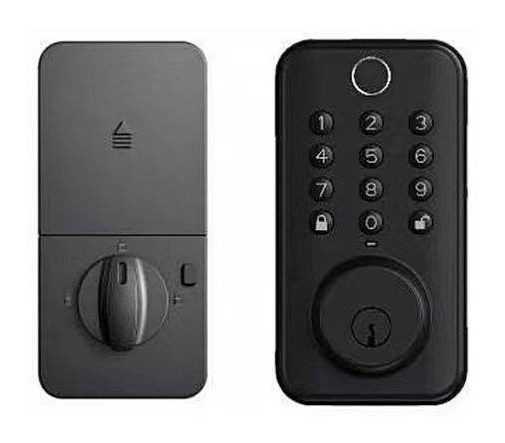

GAOYU DS05 Smart Deadbolt Lock
US/EU standard deadbolt · Tuya / TT Lock · 35-55mm doors
Key features of the DS05
- Door Sensor (optional)
- APP Remote Unlock
- Temporary Password
- Anti-peep Password
- Low Battery Alert
About the GAOYU DS05
The DS05 is the narrow-format version of the deadbolt range, with a slim vertical keypad that fits doors where the strike area is limited. It supports offline temporary passwords, useful for housekeeping and short-term rentals.
The DS05 is part of GAOYU’s deadbolt locks range, manufactured in Zhongshan, Guangdong, China. It is covered by GAOYU’s CE (RED) certification and can be supplied with OEM branding, custom packaging and market-specific manuals. Standard lead time is 25–35 days for stock models and 40–50 days for custom colours.
Technical specifications — GAOYU DS05
| Model | DS05 |
|---|---|
| Color | Black / Silver |
| Material | Space grade zinc alloy |
| Dimensions | Outdoor 68×140mm / Indoor 65×140mm · Latch 60 / 70mm |
| Unlock Methods | Fingerprint / Password / Card / Key |
| FP/Password Capacity | 100 sets each (fingerprint / password / card) |
| Door Type | Wood, metal, PVC doors |
| Door Thickness | 35 - 55mm |
| Power Supply | 6V (4×AA alkaline batteries) |
| Voice Navigation | Chinese / English / Spanish / Portuguese |
| Supported Versions | Stand-alone / Tuya (Bluetooth/WiFi) / TT Lock |
| Functions | Door sensor (optional) · App remote unlock · Temporary password · Anti-peep virtual code · Low battery alert |
Ordering the DS05 for your market
- Model: DS05
- Color: Black / Silver
- Material: Space grade zinc alloy
- Dimensions: Outdoor 68×140mm / Indoor 65×140mm · Latch 60 / 70mm
- Unlock Methods: Fingerprint / Password / Card / Key
- Minimum order: 100 units per model for standard colours; 300 units for custom colours or OEM housing.
- Certification: CE (RED) — certificate DLE-260609033C, test reports EN 62368-1, EN 50663, EN 301 489-1/-3 and EN 300 330.
- Payment & shipping: T/T 30% deposit, balance before shipment; FOB Shenzhen / Zhongshan or CIF on request.
Full specification sheet
Downloadable / printable datasheet supplied by GAOYU for the DS05.
