DS07 · Round Keyhole DS07

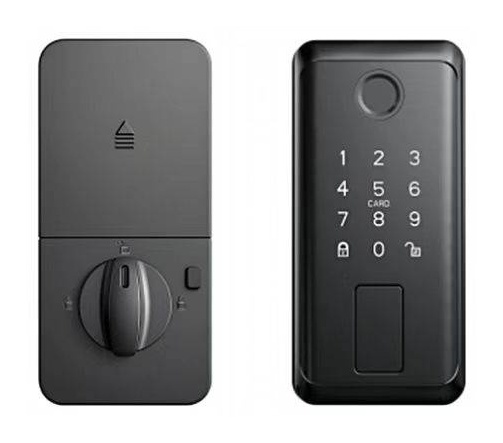

GAOYU DS07 Smart Deadbolt Lock
US/EU standard deadbolt · Tuya / TT Lock · 35-55mm doors
Key features of the DS07
- Door Sensor (optional)
- APP Remote Unlock
- Temporary Password
- Anti-peep Password
- Low Battery Alert
About the GAOYU DS07
The DS07 is a single-cylinder smart deadbolt for US-standard doors. It replaces an existing deadbolt without wiring, adds fingerprint and app access, and includes an anti-peel alarm that triggers if the lock is forced off the door.
The DS07 is part of GAOYU’s deadbolt locks range, manufactured in Zhongshan, Guangdong, China. It is covered by GAOYU’s CE (RED) certification and can be supplied with OEM branding, custom packaging and market-specific manuals. Standard lead time is 25–35 days for stock models and 40–50 days for custom colours.
Technical specifications — GAOYU DS07
| Model | DS07 |
|---|---|
| Color | Black / Silver |
| Material | Space grade zinc alloy |
| Dimensions | Outdoor 68×140mm / Indoor 65×140mm · Latch 60 / 70mm |
| Unlock Methods | Fingerprint / Password / Card / Key |
| FP/Password Capacity | 100 sets each (fingerprint / password / card) |
| Door Type | Wood, metal, PVC doors |
| Door Thickness | 35 - 55mm |
| Power Supply | 6V (4×AA alkaline batteries) |
| Voice Navigation | Chinese / English |
| Supported Versions | Stand-alone / Tuya (Bluetooth/WiFi) / TT Lock |
| Functions | Door sensor (optional) · App remote unlock · Temporary password · Anti-peep virtual code · Low battery alert |
Ordering the DS07 for your market
- Model: DS07
- Color: Black / Silver
- Material: Space grade zinc alloy
- Dimensions: Outdoor 68×140mm / Indoor 65×140mm · Latch 60 / 70mm
- Unlock Methods: Fingerprint / Password / Card / Key
- Minimum order: 100 units per model for standard colours; 300 units for custom colours or OEM housing.
- Certification: CE (RED) — certificate DLE-260609033C, test reports EN 62368-1, EN 50663, EN 301 489-1/-3 and EN 300 330.
- Payment & shipping: T/T 30% deposit, balance before shipment; FOB Shenzhen / Zhongshan or CIF on request.
Full specification sheet
Downloadable / printable datasheet supplied by GAOYU for the DS07.
GAOYU — Zhongshan Gaoyu Electronic Technology Co., Ltd., smart lock manufacturer in Xiaolan, Zhongshan, China. OEM / ODM, CE (RED) certified, exporting to Europe, the Middle East, Central Asia and Africa. About the factory · All models · Contact sales.
